WIDE & HEAVY BUSBARS
Compare Busbar Machine Capacity for Thick & Wide Bars
A 200 mm wide bar does not identify one machine. Thickness, bend orientation and the way you handle the part determine the next selection step.
More width or more thickness?
The 30-3NC MAX offers a 12 × 200 mm working range for wider bars. For thicker parts, compare the standard 50-3NC in the 16 mm thickness class, with width specified by configuration, and the 80-3NC at 20 × 300 mm. Check edge bending, hole size and material handling separately.
12 mm thick, 200 mm wide
The 30-3NC MAX is documented for this range in an UAE delivery project. It is worth discussing when you need additional width without moving above the 12 mm thickness class.
When you need a thicker working range
The standard 50-3NC covers the 16 mm thickness class with working width defined by configuration. The 80-3NC has a 20 × 300 mm main working range. Main-direction and edge-bending limits differ; the 80-3NC edge-bending limit is 12 mm thickness × 120 mm width.
Check the complete handling plan
Include the longest part, stock length, required bend sequence and material support arrangement in your inquiry. Ask for a trial using a representative part when clearances or handling may limit the process.
Do not lose the bend-direction limit

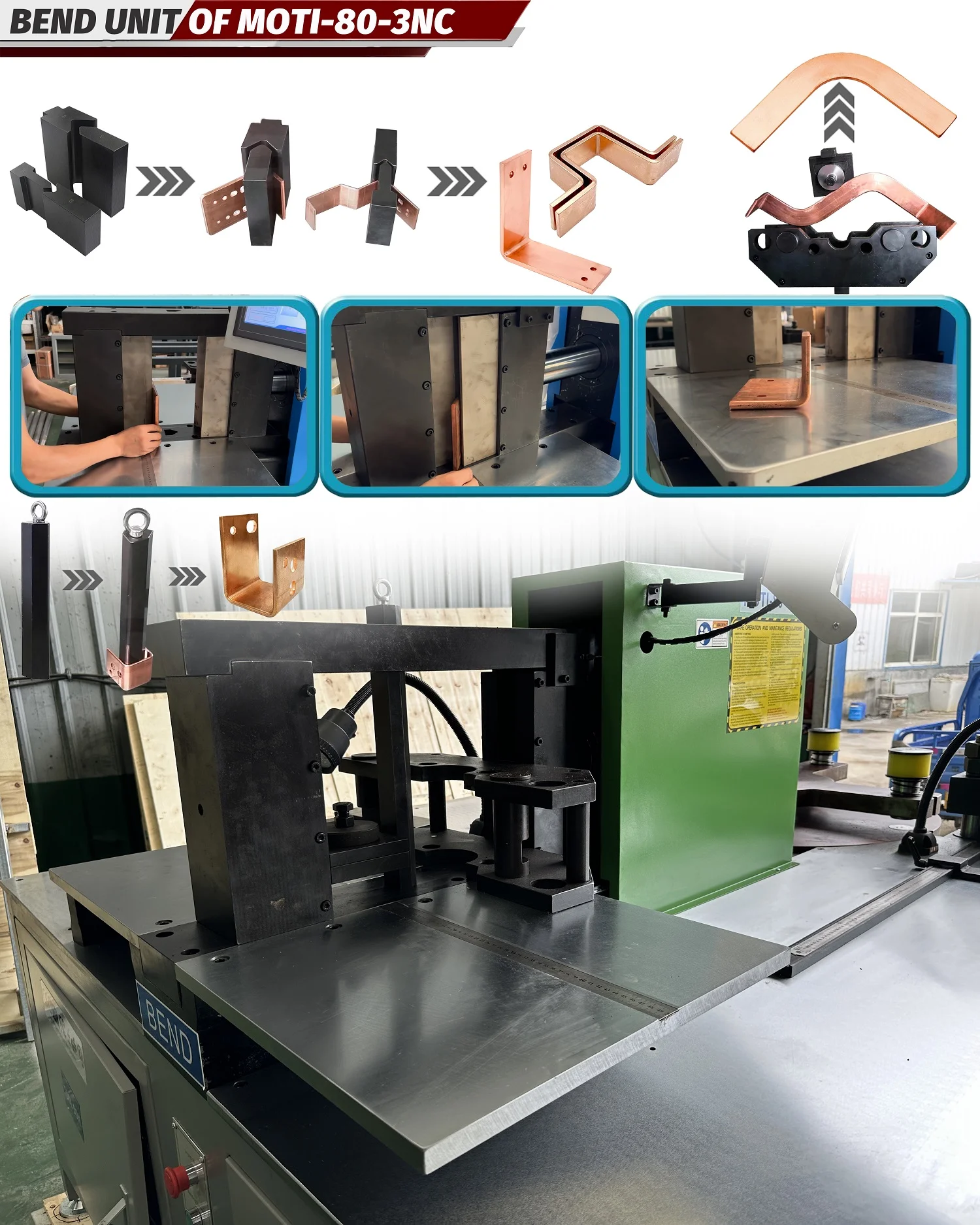

The 80-3NC main range is 20 × 300 mm, while its published edge-bending range is 120 mm wide × 12 mm thick. A wide or thick part may fit the cutting stage and still require a separate review at bending. Send the intended orientation and the complete shape.
Separate capacity from repeat setup
The standard 50-3NC covers the 16 mm thickness class with width specified by configuration. The 50-3NC PRO has a 16 × 250 mm main working range and four servo positioning axes. Servo positioning addresses repeated dimension settings, while the 80-3NC addresses a larger thickness and width class. Choose around the part and the work performed at each station.
Include handling in the trial

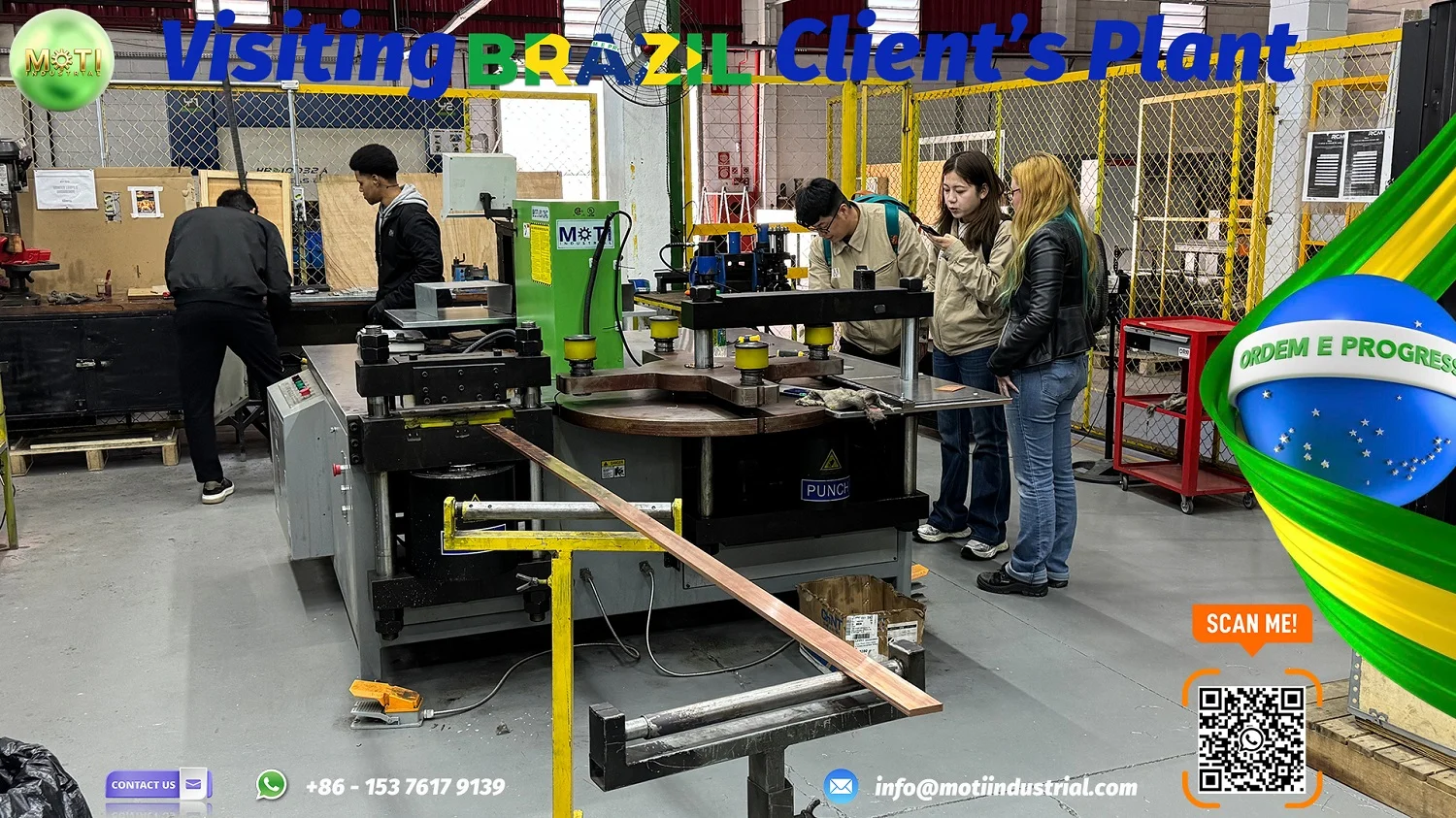

Long or heavy bars need support before, during and after forming. Show the longest stock and the largest finished shape in the layout review. The TRISKEL 80-3NC visit provides an example of this model in a customer workshop.
IN THIS GUIDE
Have a similar part?
Send your drawing, material size and production requirements. Include the holes and bends you need to make.
01 RELATED EQUIPMENT
Explore the machine options.
3-in-1 workstation
A wider working range for panel production.
16 mm thickness class
Thickness × width · operation limits apply
Heavy-duty 3-in-1
For thicker and wider copper busbars.
20 × 300 mm
Thickness × width · operation limits apply
Wide-format 3-in-1
More width in the 12 mm thickness class.
12 × 200 mm
Thickness × width · operation limits apply
Check Capacity Against the Finished Part
See the 80-3NC in an operating workshop and review why flat and edge bends have different working limits.
Tell us about the busbars you make.
Share your material, maximum thickness and width, and the cutting, punching or bending work you need. A drawing or a sample requirement helps us discuss the right machine and tooling.
We use your details to respond to your machine enquiry. For drawings, use the email or WhatsApp links below.
Have a drawing? Attach your PDF, CAD file or clear part photo in email or WhatsApp. Include material, thickness, width and quantity.
