Heavy-duty 3-in-1
MOTI-80-3NC Heavy-duty Busbar Processing Machine
For thicker and wider copper busbars.
The 80-3NC extends the standard 3-in-1 range to 20 × 300 mm. Review the bend direction, hole geometry and handling requirements of your actual workpiece before selecting this machine.
Thickness × width
20 × 300 mm
Send your drawing to check material, tooling and operation limits.
THE RIGHT APPLICATION
A three-process workstation for thicker and wider copper connections.
The MOTI-80-3NC extends the standard range to 20 mm thick and 300 mm wide, with 800 kN published punching and bending force. It is the model to discuss when the selected 50-3NC working range is insufficient. Large parts also need a clear handling route: include stock length, support positions and the space needed to turn a bent part. Our TRISKEL visit in Brazil shows this model in an established customer workshop.
01 TECHNICAL OVERVIEW
Know the working range.
Compare these working limits with your part. Your quotation identifies the supplied machine version and tooling.
| Cutting capacity (thickness × width) | 20 × 300 mm |
|---|---|
| Punching capacity (thickness × width) | 20 × 300 mm |
| Main bending capacity (thickness × width) | 20 × 300 mm |
| Punching force | 800 kN |
| Bending force | 800 kN |
| Machine weight | 2350 kg |
| Bending accuracy | ±1 ° |
| Repeat bending accuracy | ±0.3 ° |
| Punching diameter | 4.3–34 mm |
| Main motors | 3 × 7.5 kW |
| Edge bending (width × thickness) | 120 × 12 mm |
Before you choose
The headline capacity is an initial selection reference. Hole size, edge distance, bend direction and tooling can impose separate limits. Request a drawing review for your application.
Heavy-duty control and tooling
MOTI’s model information lists three 7.5 kW hydraulic power units, Siemens control, a 10-inch touch screen and Cr12MoV punching-tool steel. Confirm the supplied turret, die sizes and material-support arrangement for your thick and wide busbars.
02 INSIDE THE PROCESS
See how the work gets done.
Equipment details, positioning and the workpiece requirements to discuss for this model.
01
Cut to the next operation

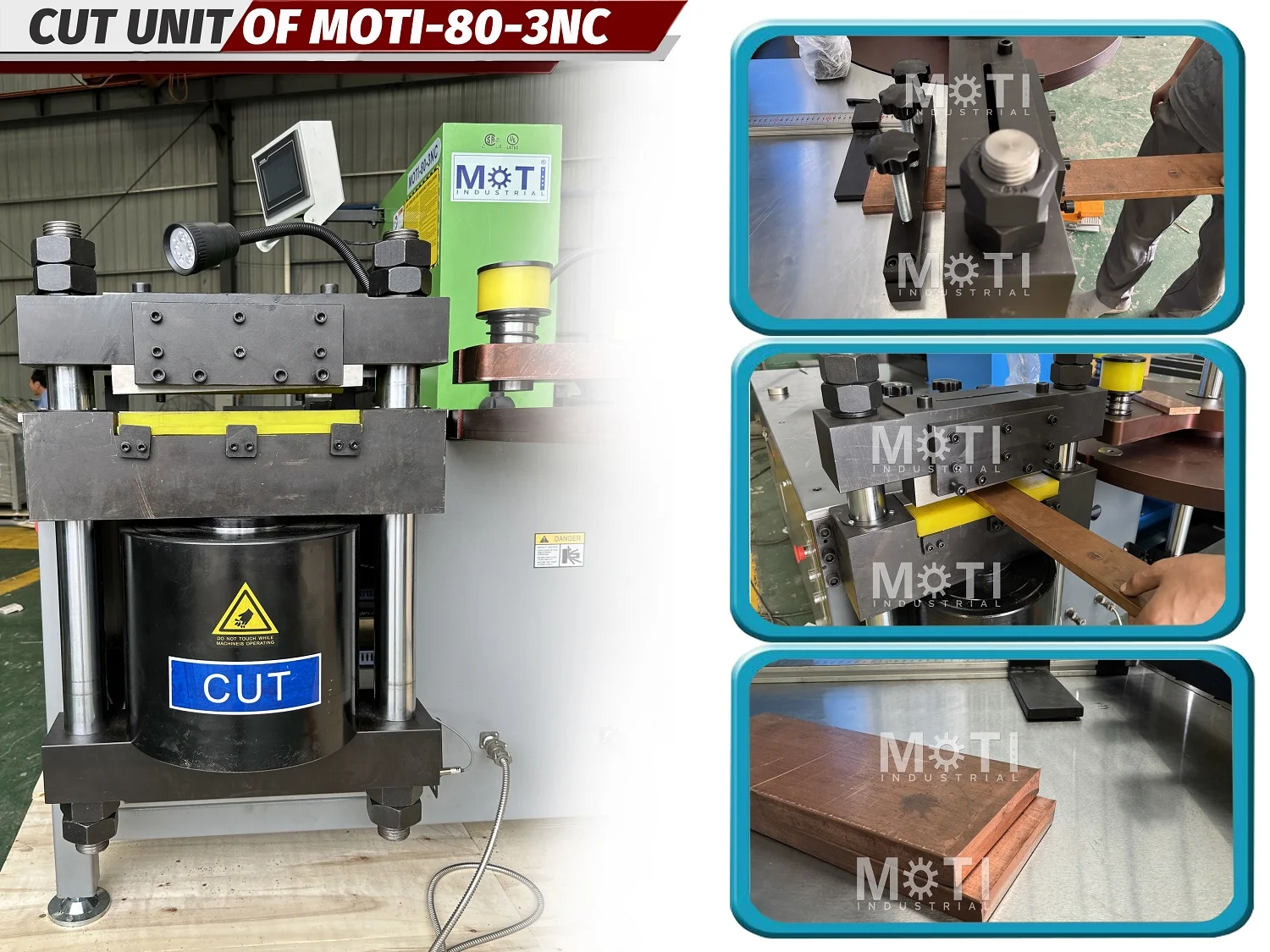

The hydraulic shearing station has a published 20 × 300 mm thickness × width range. Its cutting structure supports preparation of blanks for punching and bending. Review the blade arrangement, length reference and support of the offcut with your actual bar; check cut squareness and edge condition on a sample before continuing to the next operation.
02
Keep common holes ready

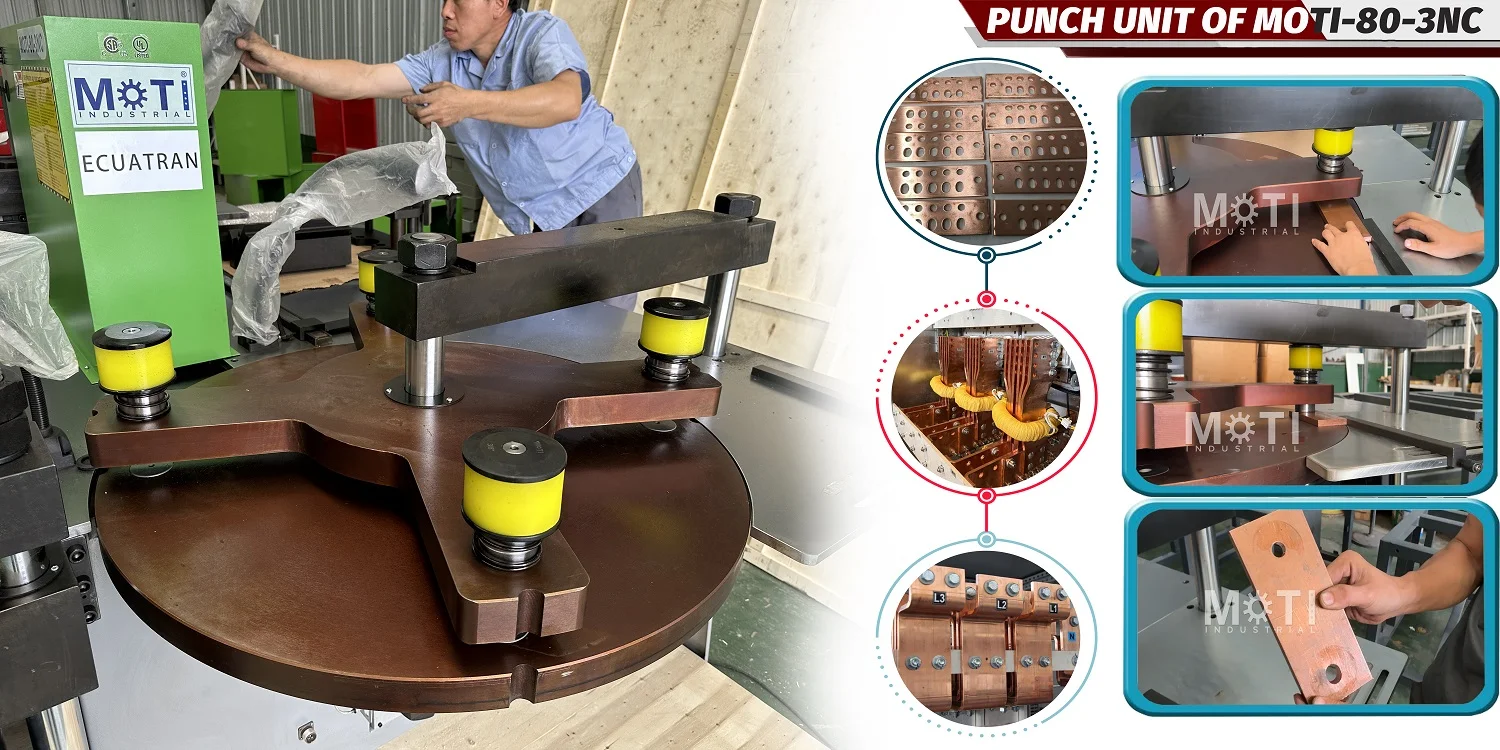

The turret punching station supports a published hole-diameter range of 4.3–34 mm. Coordinate, laser and positioning-pin references are described for this model. Confirm the supplied turret and die set in the quotation; match each punch to the bar material and thickness.
03
Form the connection
The CNC bending station uses a closed structure. Digital angle control supports repeat work. Appropriate tools extend the work to flat, edge, U and Z forms, with embossing and twisting configurations to discuss. The main-direction 20 × 300 mm rating differs from the edge-bending limit shown in the specifications. Set up and check the tool around the complete shape, especially short flanges and successive bends.
MOTI INDUSTRIAL · EQUIPMENT VIDEO
See the equipment in motion. Video from MOTI’s original product page and YouTube channel.
03 TOOLS & FINISHED PARTS
Tooling, configuration and options
Standard tooling: Main-direction, edge-bending, U-bending and embossing tools are described for the 80-3NC. Your quotation identifies the actual die sizes, quantities and matched cutting and punching tools.
Options: Custom molds and accessories are reviewed from your finished-part drawing and the selected machine interface.
Punching dies
Specify each hole shape, size, quantity and required thickness. Include slot orientation and edge distance.
Bending tools
Define flat or edge bends, angle, radius, minimum flange and any U/Z sequence. The finished shape determines tool access.
Cutting blades
Confirm the blade set for the selected machine and material; include replacement blades if needed.
Special forming tools
Twisting, embossing or combined operations need a drawing and confirmation of the machine interface.
04 FROM SELECTION TO PRODUCTION
Review a complete working cycle.
Prepare the job
Identify the material, drawing revision and finished-part dimensions. Select the required punch and bending tools, set the cutting reference and provide support for the full bar length. Use the operating manual for setup and tool changes.
Make and check the first part
Check cut length, hole centers and the finished bend against the drawing. Keep the same datum through successive operations. For a new material batch or tool, check the first bend before applying the setting to the rest of the order.
Organize the repeat work
The three independent hydraulic workstations allow cutting, punching and bending to be organized in parallel. Plan the operators’ working areas, part transfer and material supports. Actual output depends on the whole job, including loading, positioning and inspection.
THIS MODEL IN A CUSTOMER PROJECT
TRISKEL: supporting an 80-3NC in an operating workshop
A follow-up visit puts the machine in the context of daily production. At TRISKEL in Brazil, the discussion centered on an existing MOTI-80-3NC, maintenance needs and the next stage of workshop development.
05 MOTI-80-3NC · QUESTIONS
Before you choose.
Its headline working range is 20 × 300 mm. Compare thickness and width together, then check the punching diameter, edge-bending capacity, motor power, footprint and handling space. Those operation-specific limits are more useful than selecting by model number alone.
No. The standard machine requires workpiece handling and positioning at the workstations. CNC bending control and independent hydraulic systems do not make it an automatic production line. For servo-assisted positioning at cutting, punching and bending, compare the 50-3NC PRO.
The standard series distinguishes a published bending accuracy of ±1° from repeat bending accuracy of ±0.3°. These are different measures. Your trial should state the material, tooling, angle and measuring method, and check the completed part.
Yes. Send a dimensioned drawing with material, thickness, bend radius and angle, holes and assembly references. We can discuss the tool design and whether the existing turret or fixture needs a custom interface.
06 COMPARE OPTIONS
Find the right level of capability.
3-in-1 workstation
A wider working range for panel production.
16 mm thickness class
Thickness × width · operation limits apply
Servo 3-in-1
Four servo positioning axes for repeated work.
16 × 250 mm
Thickness × width · operation limits apply
Servo CNC bending center
Dedicated bending with a 200 mm width.
15 × 200 mm
Thickness × width · operation limits apply
Tell us about the busbars you make.
Share your material, maximum thickness and width, and the cutting, punching or bending work you need. A drawing or a sample requirement helps us discuss the right machine and tooling.
We use your details to respond to your machine enquiry. For drawings, use the email or WhatsApp links below.
Have a drawing? Attach your PDF, CAD file or clear part photo in email or WhatsApp. Include material, thickness, width and quantity.
